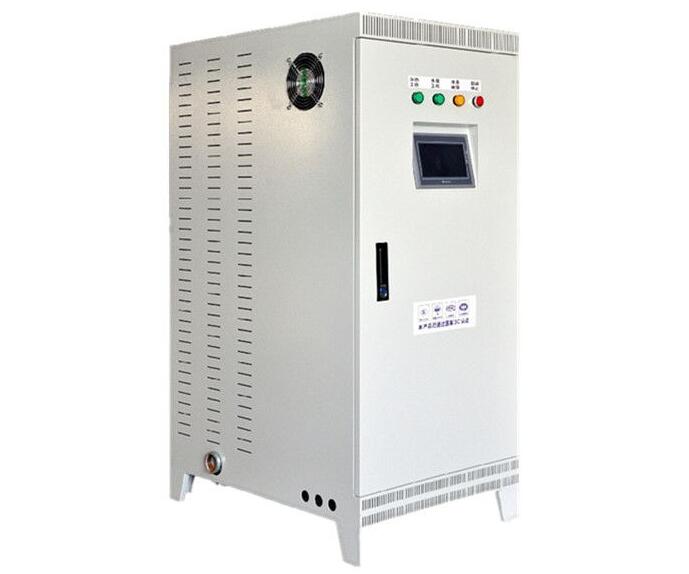

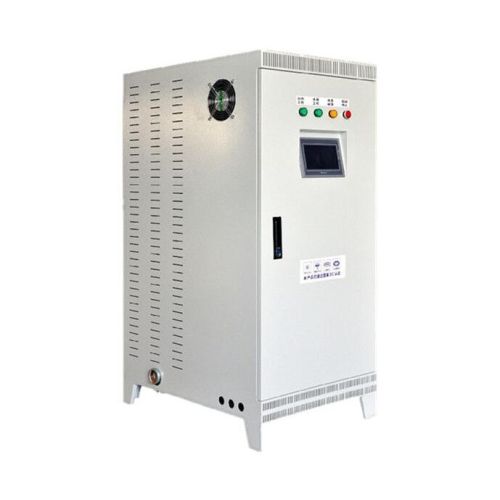

40KW-80KW Cabinet Type Electromagnetic Induction Heating Hot Water Stove
Electromagnetic Induction Heating
Product Description
Descriptions
Model No.: ZG-EH40HB-C, ZG-EH50HB-C, ZG-EH60HB-C, ZG-EH80HB-C
Rated Power: 40kw-80kw
Working Principle: Electromagnetic Heating Water to temperature around 65 C degrees and Circulating wall-mounted or underfloor radiators for warming the room space temperature in a very comfortable environment.
Main Features: PLC and touch screen control, water and electricity totally separated with no dangerous at all.
Extra Function: Induction Heating Water Boiler can be connect to Wi-Fi remote control
Two Installation Methods of Electromagnetic Induction Heating Hot Water Stove
Connection Mode 1
When the Electromagnetic Induction Heating Hot Water Stove generating hot water and output directly to the radiator for warming the room space without a hot water storage tank. After circulating through out the radiation water would become cool again and then run back to the Electromagnetic Induction Heating Hot Water Stove for heating to hot water again!
Connection Mode 2
The hot water generated from the Electromagnetic Induction Heating Hot Water Stove and run into the hot water storage tank for using, that means, when the the Electromagnetic Induction Heating Hot Water Stove stopped working, we still have hot water to warming the room space, that a good solution in the cold winter. We can keep the hot water running through the radiator all the time. The water becoming cool after through the radiator would flow back the stove for heating again!
