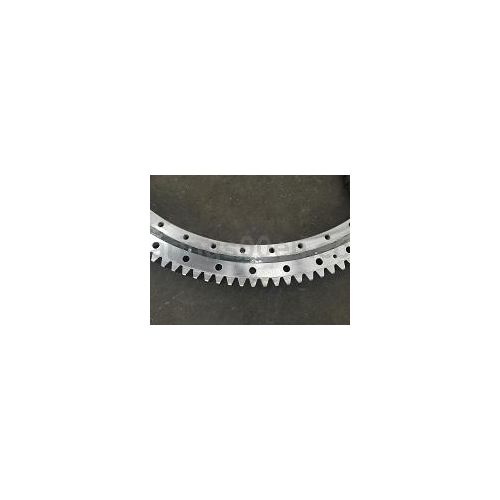

91-32 0955/1-06115 High precision slewing bearing in stock
IMO slewing bearing Series standard bearing type 91-32 0955/1-06115 Four point contact ball L shape flange slewing bearing with external teeth.
Outer dia 1096mm, inner dia 805mm,height 90mm.
Other Technical Parameters:
Roller: GCr15/GCr15SiMn
Seal: NBR, High temperature Seal
Material:50Mn/42Crmo
Race Hardeness:55-62HRC
Material Hardeness:187-241HB
Tolerance (μm): +-800
Delivery time:Instock: 3days Outstock: 25-30days
Delivery way: Sea freight, Air freight, World Express
Quality Level: P0 P6 P5 P4 P2
Main market:
MEXICO, SPAN, SOUTH AFRICA, TURKEY, VIETNAM, INDONESIA, THAILAND, Southeast Asia, Middle
East,Russia,Europe,America
Brand: OEM,Customized Logo,Brand as your request
Service: Reply Within 24hours
Advantages:
It has the characteristics of compact structure, light weight, good structural rigidity, stable operation, high precision, safety and reliability.
① The size of the slewing bearing is relatively large, and its diameter is usually 0.1-10 meters.
②It can bear several loads, not only axial force and radial force, but also larger overturning moment.
③The operating speed is low, usually below 50 rpm. In many cases, the slewing bearing does not operate continuously, but only rotates back and forth within an angle, which is equivalent to the so-called "swing bearing".
④Higher manufacturing technology in materials and heat treatment.
⑤ Generally, the slewing bearing is equipped with a gear ring for rotating drive and a sealing device for dust prevention. There are also some special requirements for high temperature and cold resistant sealing rings, which can adapt to the high environmental requirements.
⑥The installation method is to fix them on the upper and lower supports with screws. Easy to install and easy to operate.
Application:
Slewing bearings are widely used. Construction machinery is the first application of slewing bearings, and is also widely used, such as earthmoving machinery, excavators, disintegrators, stackers and reclaimers, graders, road rollers, dynamic compactors, rock drilling machinery, roadheaders, etc. There are other concrete machinery: concrete pump truck, concrete mixing boom integrated machine, belt distributor Feeding machinery: disc feeder, sand mixer; lifting machinery: wheel crane, crawler crane, door Pedestal cranes, tower cranes, fork cranes, cranes, gantry cranes; foundation processing machinery: impact reverse circulation drilling rigs, rotary drilling rigs, impact rotary drilling rigs, rotary drilling rigs, reverse circulation rotary drilling rigs, forward circulation Rotary drilling rigs, long spiral engineering drilling rigs, submersible engineering drilling rigs, static pile drivers, pile drivers; engineering ships: dredgers; vehicles: bridge inspection vehicles, fire trucks, window cleaners, flat beam transport vehicles, aerial work vehicles, self-propelled Type aerial work platform; light industry machinery: beverage machinery, bottle blowing machine, packaging machinery, filling machine, rotary bottle unscrambler, injection molding machine; marine crane: floating
Relative Models:
External toothed:
91-32 0955/1-06115(1096.2*805*90mm)
91-32 1055/1-06125(1198*905*90mm)
91-32 1155/1-06135(1298*1005*90mm)
91-32 1255/1-06145(1398*1105*90mm)
91-32 1355/1-06155(1498*105*90mm)
91-32 1455/1-06165(1598*1305*90mm)
All of the bearing surface will be grinding so that the slewing bearings have long lifetime,
The slewing bearing will be produced as your demands,
1 Offer the size for us, our technicist will design the bearing
2 Offer the type for us, If that is standard, we can produce directly
3 Offer the drawing for us, we can produce as the same as the drawing
