Desktop Soldering Robot TBS-T-6331R

Desktop Soldering Robot

Product Description

Our desktop soldering robot is a high -performance soldering  robot. By application of multi-axis drive manipulator and software control to achieve precise positioning of the soldering head. This quick soldering desktop robot is used for fully automatic and reliable treatment of spot soldering, drag soldering, automatic cleaning and multi-angle soldering.

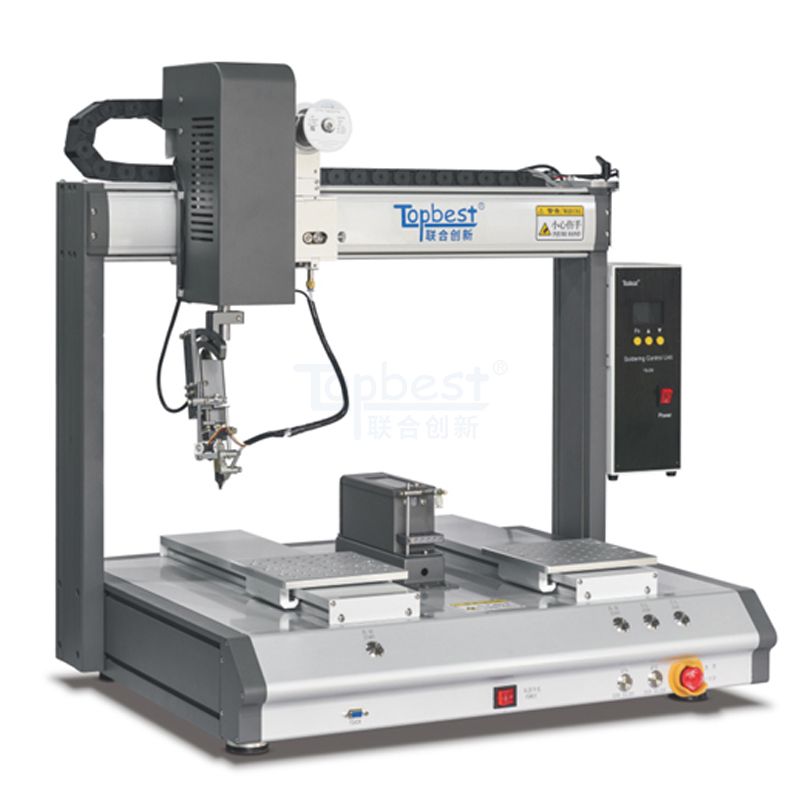

Desktop Soldering Robot TBS-T-6331R

Advantage of Desktop Soldering Robot

■ Good soldering uniformity achieved high yield

■ Two rails working in turn to improve efficiency

■ Suitable for soldering various products

■ Can be customized according to special requirements

■ Spot soldering, drag soldering, automatic cleaning and multi-angle soldering are available.

■ Position calibration, soldering dot array, parameter copy, automatic location and skip are available.

■ Teaching programming enables customers to implement all types of hand soldering upon their requirement.

■ Program calibration achieves workpiece integral coordinate position compensation.

■ Program insertion and deletion make program revised easily and rapidly.

■ Intelligent control system achieves accurate delivery of solder, speed, time, temperature and quantity of solder can be adjusted and controlled accurately

How does the Desktop Soldering Robot work?

● Run mode: By application of multi-axis drive manipulator and software control to achieve precise positioning of the soldering head.

● Soldering manner: Thermostatically heating by solder iron under high-frequency eddy current.

● Working principle: Fix solder iron at the manipulator, move to the appointed soldering coordinate, feed solder wire automatically at head of solder iron; solder wire solders under high temperature and come into joint with the target.



Our desktop soldering robot has a variety of models to choose from, you can further discover other soldering robots.

Specifications

Model

TBS-T-6331R(5 axis , can rotate)

TBS-T-6331RCM(5 axis , can rotate)

Machine size

930X650X880MM, 80KG

900*650*1025MM, 150KG

Processing scope

580*280*80MM

580*280*80MM

Maximum jig size

250*280*70MM for each working station

250*280*70MM for each working station

Solder wire

Φ0.6~1.2mm

Φ0.6~1.2mm

Solder feeding speed

1-50MM/S

1-50MM/S

Feeding resolution

0.1MM

0.1MM

Move speed

X, Y 600-800MM/S, Z 400MM/S, R 300°/S

X, Y 600-800MM/S, Z 400MM/S, R 300°/S

Repeated precision

+/-0.02MM

+/-0.02MM

Temperature control range

0-550C°

0-550C°

Temperature control accuracy

+/-1C°

+/-1C°

Heating power

150W

150W

Air pressure requirement

0.4 to 0.8MPa(4 to 8kgf/cm2) as dry air

0.4 to 0.8MPa(4 to 8kgf/cm2) as dry air

Control System

SCM + Teach pendant

SCM + Teach pendant

Driving mode

precision stepping motor + synchronous belt

precision stepping motor + synchronous belt

Soldering Method

Point Soldering/Drag Soldering

Point Soldering/Drag Soldering

Iron Tip Cleaning

Automatic Air cleaning

Automatic Air cleaning

Soldering monitor

No

Real time soldering monitoring

Safety operation

Start button

Enclosure and safety light curtains + start button

Working Temperature

5-40C°

5-40C°

Working Humidity

20-90% RH

20-90% RH
