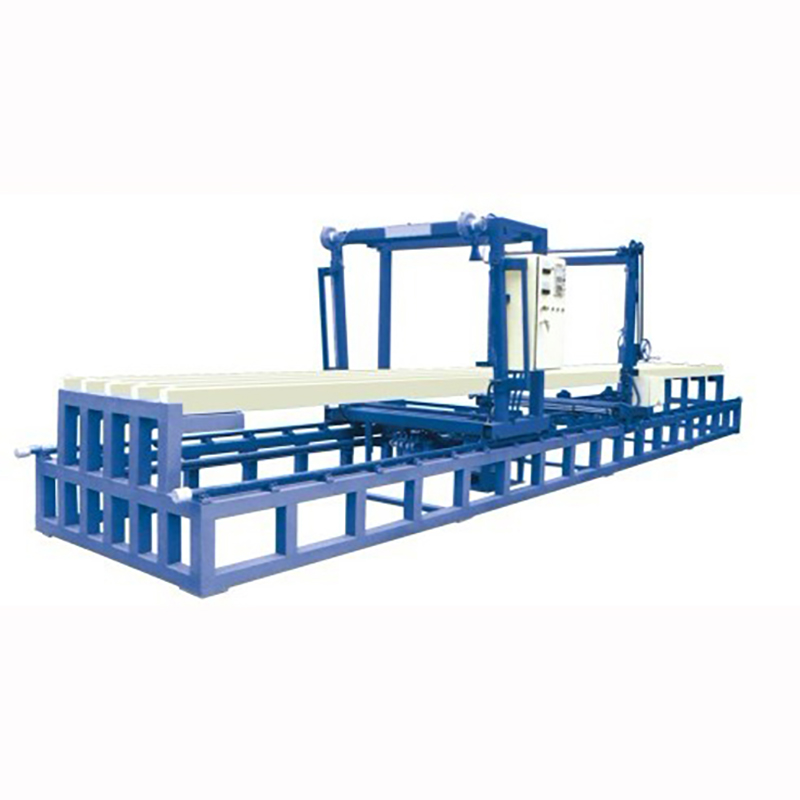

Automatic EPS Foam Block Cutting Machine

Automatic EPS Foam Block Cutting Machine

Product Description

Technical Data of Eps Cutting Machinery



Unit

SPC200A

SPC400A

SPC600A

SPC800A

Max Block Size

mm

2000*1300*1300

4000*1300*1300

6000*1300*1300

8000*1300*1300

Power

kw

11.2

11.2

11.2

11.2

Overall Dimension

mm

4800*1950*1850

6800*1950*2450

8800*1950*2450

10800*1950*2450

Weight

kg

800

1200

1600

2000



Automatic Continuous Styrofoam Polystyrene Cutting Machine



Application

These blocks are cured, then cut and shaped to produce a variety of eps products, bringing lots of benefits to the construction and packing industries.

Related reading

Functions & Features:

A.The Aluminum Frame Is Highly Stable And Accurate.

B.The Cutting Line Adopts Stepping Motor Which Is Very Stable And Could Be Timing Freely, This Matches The Requirement For Cutting Special Shapes With Frequeniy Changeable Timing, The Accuracy Is 0.5mm.

C.Voltage Regulation: The Cutting Line Is Equipped With A 3kw Transformer, Electrically Adjustable Output Voltage Is 0-70v, 20 Heating Wires Could Be Equipped, So 20 Same Images Or Characters Could Be Cut Simultaneously.

D.The Cutting Line Is Equipped With Famed Brand Pc Installed With English Version Drawing And Cutting Software Which Is Very Easily Operated, Customers Only Need To Draw Images With The Drawing Software And Transfer Them Into Cutting Codes By Cutting Software, The Cutting Line Wil Automatically Finish All The Other Jobs.

E.The Touch Screen Shows The Images Being Cut And Can Trace The Cutting Process. Cutting Speed Is Adjustable, Maximum Speed Could Be 1000mm/Min. Parameter Setting Is Quite Simple.

F. The Cutting Line Has Stroke Protection Function, When The Running Stroke Exceeds Regulated Stroke, The Cutting Line Shall Stop Running Automatically, Besides, The Cutting Line Also Has Functions Like Power-Off Memory, Reverse Cut And Rotation, Mirror Symmetry And Backlash Compensation, Etc.

High Precision Wire setting system (Patent Product, finish wire setting in 2 minutes. In China, only we have HIGH PRESION WIRE SETTING SYSTEM, in other company, they have auto wire setting system, but after wire setting, they should manually check thickness again.)



Advantage of Eps Cutting Machinery

1. Machine body use high strength of square tube and steel, with strong structure, beautiful appearance

2. Machine has horizontal, vertical, and cutting device, three direction cutting

3. Machine adopts frequency control of motor speed, large range of speed adjustable, smooth movement and low noise

4. Machine use 10 KVA transformer, big adjusting range, the cutting speed is fast
