Crimped Wire Screens

Product Description

Membership:Free Member Scince Jun 14, 2023

FOB Price:Atlas Wedge Wire Co.

Min. Order Quantity:Atlas Wedge Wire Co.

Supply Abillity:Atlas Wedge Wire Co.

Port:Atlas Wedge Wire Co.

Payment Terms:Atlas Wedge Wire Co.

Package:Atlas Wedge Wire Co.

Keyword:Crimped Wire Screens

Product Detail
Company Info
Quick Detail
Place of Origin
China [CN]
HS-CODE
7314-20
Package & Delivery Lead Time
Package
Atlas Wedge Wire Co.
Detailed Description

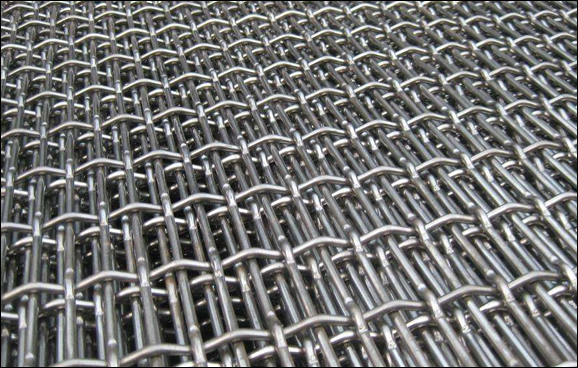

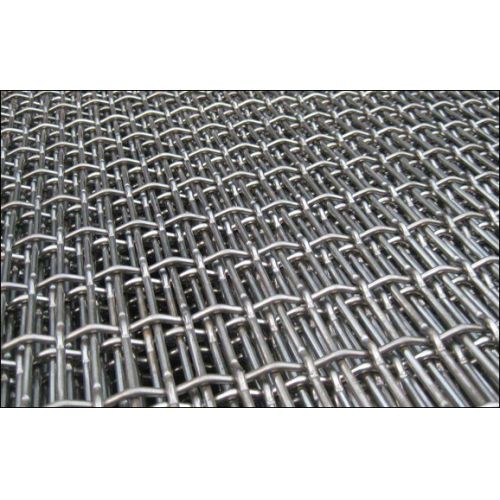

Crimped Wire Mesh Screens, 430, 304, 316, Mn 65 Steel for Mining Vibrating Quarry Crasher

Crimped wire screen is a high tensile wire screen suitable for quarries, sand and gravel pits and all types of ore treatment.

Atlas crimped screen is renowned for extremely high resistance to abrasion. Close checks on raw materials, production processes and constant quality control at all stages of manufacture guarantee a top quality finished product.

Four typical Crimped Mesh Patterns:

Flat Top
The top or working surface of the screen is smooth, all the crimping is on the underside, asssuring a more even weave. Materials are free to move over the screen.

Double Crimp
Evenly crimped in warp and weft, providing a rigid construction. The wires are undercrimped and sprung together thus giving a mesh which will not chatter at the intersections.

Lock Crimp
A variation of the double crimp with an additional crimp to give a firmly locked mesh. Widely used for vibratory screen cloths.

Corrugated Crimp
Extra crimps in war and weft with the wires seated in every third or fifth crimp. Gives a rigid mesh even when the aperture is large in relation to the wire diameter.

We supply:

Crimped Mesh Screen, 2.5mm Wire, Rectangular Opening

Woven of pre-crimp wire:

Opening (mm x mm)Wire Dia (MM)Size (m x m)Type
13 x 62.51.5 x 1.5Crimped
7 x 32.51.5 x 1.5Crimped
3 x 132.51.5 x 1.5Crimped
7 x 32.51.5 x 1.5Crimped
2 x 52.51.5 x 1.5Crimped
