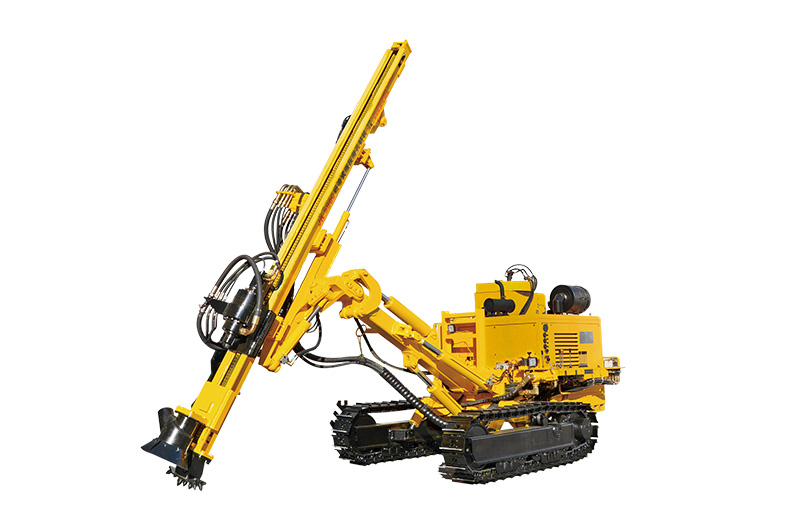

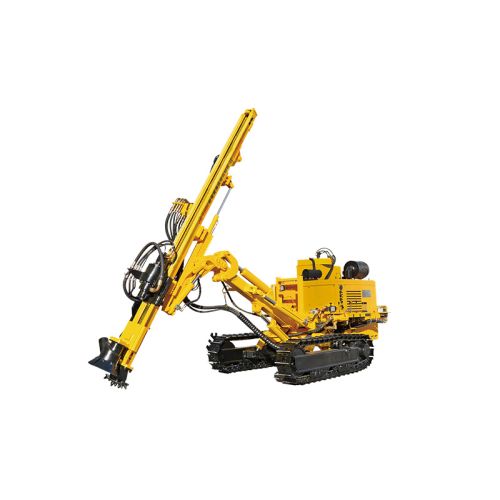

JK590BC Crawler Mounted Hydraulic DTH Drill Rig

Crawler Mounted Hydraulic DTH Drill Rig

Product Description

Crawler Drilling Rig Machines Description

JK590BC crawler drill rig has better performance than the previous generation: fully optimized structure, lower drilling footage cost, more user-friendly design. The diesel engine (electric motor)-hydraulic oil pump set is used as the power unit, and the hydraulic motor realizes the auxiliary movements such as drilling, feeding, lifting, walking and hydraulic cylinder positioning.

JK590BC drill rig is mainly used for hydro-power engineering, open pit mining, road construction, drilling and blasting operation of national defense engineering.

Crawler Drill Machine Technical Parameters

Model JK590BC
Borehole diameter 90-165mm
Borehole depth 50m
Applicable rock hardness f=6-20
Working air pressure 1.2-2.4MPa
Air consumption 11-21m³/min
Feeding stroke 4138mm
Rod-changing length 3m
Max. horizontal drilling height 3370
Rotation rate 0-80rpm
Rotation torque 3000Nm

Walking speed

2Km/h, 3Km/h
Grade ability 24°
Power Yuchai 70KW/Cummins 74KW (optional)
Electric motor 45KW
Dust collector (optional) Hydraulic dry dust collector
Wet dust collector
Dimension (LxWxH) 7000mm x 2200mm x 2100mm
Weight 7500kg




The Crawler Drill Machines are widely used in blasthole drilling of mining, hydropower, transportation and defense projects, as well as harbor and channel construction; The hydraulic drilling rigs are specialized in drilling the boreholes of large diameter and depth, for instance, water well drilling and geothermal well drilling.



Jk Crawler Drilling Machine Company Profile:

Our company is going international. As a professional manufacturer of drilling equipment, we can supply high quality crawler drilling machine, hydraulic drilling machine. JK Drilling has established a mature and complete after-sales service team, which can provide strong support to customers at home and abroad.

In the drilling rig industry, JK Drilling's innovation has been relentless. It is committed to manufacturing high security and newly designed products for customers. JK Drilling has its own R & D center, where all rigs are conceived and designed. In addition, JK Drilling has passed ISO9001, ISO14001 and OHSAS18001 certifications.



Technical Support about Crawler Mounted Hydraulic DTH Drill Machine:



The service team consists of professionally trained and qualified maintenance personnel, who have rich rig knowledge and are good at solving various problems. Now no matter where you are or how troublesome the problem is, they can quickly get there and solve your problem. We can help you get your machine up and running in the shortest amount of time.
