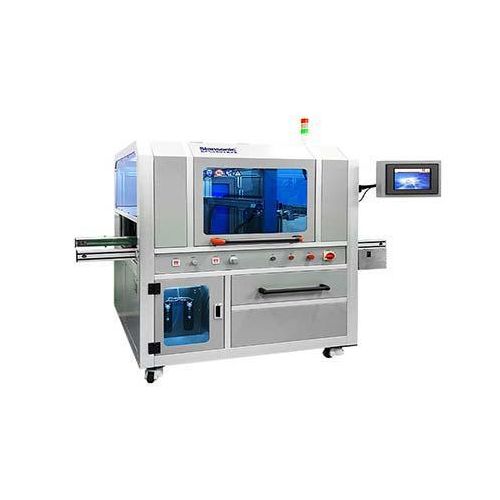

Ultrasonic Coating System for Production Line

Product Description

Min Order Quantity:1 Piece

Country/Region:China

City:Beijing

Product Attributes

  • - Place of Origin China
  • - Supply Type OEM Service
  • - Condition New
  • - Related Keywords stent coating machine

Description by Manufacturer

The ultrasonic spray coating machine for production line which has an automatic conveyor is mainly designed for installing into the existing production line. It is usually equipped with WideMist ultrasonic nozzle and also can be equipped with multiple spray nozzles in parallel. Precision continuous metering pump system is able to provide continuous liquid feeding for 24 hours. For glass, plastic, metal and other substrates, it can also be configured with atmospheric plasma spray system for surface treatment before coating process.

Ultrasonic spray coating which is a thin film layer deposition technique based on ultrasonic atomizing nozzle technology can deposit highly homogenous and controllable coating. Furthermore, since the atomization of ultrasonic spray coating is due to ultrasonic oscillation rather than the gas with high kinetic energy, ultrasonic coating significantly reduces the consumption of raw materials due to little overspray and splashing. The transfer efficiency of raw materials of ultrasonic coating is as high as 4 times of air spray coating.

Siansonic stent coating machine for production line is used for various of applications on thin film coatings deposition such as functional layers for thin-film solar cell, functional layers for biosensors and microfluidic chips, photoresist coatings for silicon wafers, anti-reflection (AR) coatings, hydrophilic coatings, hydrophobic coatings, thermal insulation coatings, transparent conductive coatings, etc.

Features of Ultrasonic Coating System for Production Line

Quality ultrasonic coating system with a conveyor for automatic transfer of substrates

Capable of multiple nozzles array for improving the production rate

Various options of Siansonic ultrasonic spray nozzles

Digital ultrasonic generator: multi high-speed DSPs process, multi-closed-loop control with power precision in 0.01W.

Continuous liquid delivery system: capable of continuous liquid feeding for 24 hours

Uniformity: >95%

Thickness of coating: 20nm-100 micron (Depends on material)

High transfer efficiency of coating material, usage ratio can be higher than 85%.

Servo motion system

Max liquid viscosity: 20-30cps

Max solid particle size in suspensions: 10-20micron

Full-color touch screen and friendly user interface.

Precision air pressure control: keep carrier gas stable and adjustable

Ultrasonic dispersion system is optional for stirring of suspensions

Built-in exhaust system and waste recycling system

Options of Ultrasonic Coating System for Production Line

ConeMist, WideMist, FocusMist, NanoMist, LineMist, Penetrator and other series of Siansonic ultrasonic nozzles.

Multi-nozzles array

Ultrasonic dispersion syringe: dispersing and stirring the suspension during liquid feeding to avoid agglomeration.

Plasma spray system

Applications of Ultrasonic Coating System for Production Line

New energy: thin film solar cells, silicone solar cells.

Biomedical: functional coatings of microfluidic chips, biosensors

Electronics and semiconductors: photoresists, conductive inks, transparent conductive oxides, etc.

Glass coating: AR anti-reflection, hydrophilic and hydrophobic coating, hard protective coating, etc.

Siansonic provides ultrasonic nebulizer , air bubble detector, ultrasonic bubble detector, sonic syringe, ultrasonic nebulizer transducer , etc. For more information, please feel free to contact us!

图片链接


Price

  • Price US$ 1 / Piece

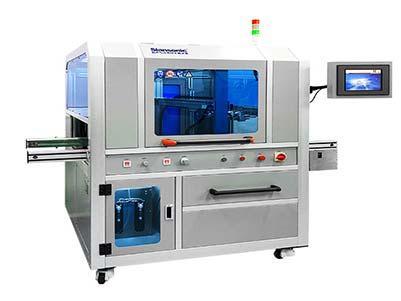

Product Image

Description by Manufacturer

The ultrasonic spray coating machine for production line which has an automatic conveyor is mainly designed for installing into the existing production line. It is usually equipped with WideMist ultrasonic nozzle and also can be equipped with multiple spray nozzles in parallel. Precision continuous metering pump system is able to provide continuous liquid feeding for 24 hours. For glass, plastic, metal and other substrates, it can also be configured with atmospheric plasma spray system for surface treatment before coating process.

Ultrasonic spray coating which is a thin film layer deposition technique based on ultrasonic atomizing nozzle technology can deposit highly homogenous and controllable coating. Furthermore, since the atomization of ultrasonic spray coating is due to ultrasonic oscillation rather than the gas with high kinetic energy, ultrasonic coating significantly reduces the consumption of raw materials due to little overspray and splashing. The transfer efficiency of raw materials of ultrasonic coating is as high as 4 times of air spray coating.

Siansonic stent coating machine for production line is used for various of applications on thin film coatings deposition such as functional layers for thin-film solar cell, functional layers for biosensors and microfluidic chips, photoresist coatings for silicon wafers, anti-reflection (AR) coatings, hydrophilic coatings, hydrophobic coatings, thermal insulation coatings, transparent conductive coatings, etc.

Features of Ultrasonic Coating System for Production Line

Quality ultrasonic coating system with a conveyor for automatic transfer of substrates

Capable of multiple nozzles array for improving the production rate

Various options of Siansonic ultrasonic spray nozzles

Digital ultrasonic generator: multi high-speed DSPs process, multi-closed-loop control with power precision in 0.01W.

Continuous liquid delivery system: capable of continuous liquid feeding for 24 hours

Uniformity: >95%

Thickness of coating: 20nm-100 micron (Depends on material)

High transfer efficiency of coating material, usage ratio can be higher than 85%.

Servo motion system

Max liquid viscosity: 20-30cps

Max solid particle size in suspensions: 10-20micron

Full-color touch screen and friendly user interface.

Precision air pressure control: keep carrier gas stable and adjustable

Ultrasonic dispersion system is optional for stirring of suspensions

Built-in exhaust system and waste recycling system

Options of Ultrasonic Coating System for Production Line

ConeMist, WideMist, FocusMist, NanoMist, LineMist, Penetrator and other series of Siansonic ultrasonic nozzles.

Multi-nozzles array

Ultrasonic dispersion syringe: dispersing and stirring the suspension during liquid feeding to avoid agglomeration.

Plasma spray system

Applications of Ultrasonic Coating System for Production Line

New energy: thin film solar cells, silicone solar cells.

Biomedical: functional coatings of microfluidic chips, biosensors

Electronics and semiconductors: photoresists, conductive inks, transparent conductive oxides, etc.

Glass coating: AR anti-reflection, hydrophilic and hydrophobic coating, hard protective coating, etc.

Siansonic provides ultrasonic nebulizer , air bubble detector, ultrasonic bubble detector, sonic syringe, ultrasonic nebulizer transducer , etc. For more information, please feel free to contact us!
