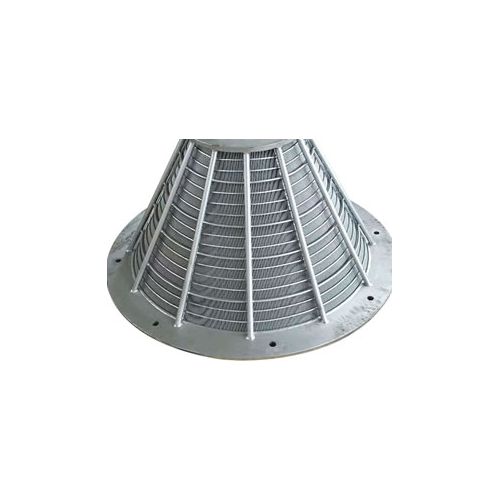

Wedge Wire Basket

Wedge wire basket engineered in various sizes is one form of filtering elements or cartridges in flow control, mainly mine, coal development, water treatment and well screening industries.

Why Choose Wedge Wire Basket?
Features and Benefits of V Profile Wedge Wire Basket Compared with Perforated Filter Basket and Woven Mesh Baskets Elements:
The welded wedge wire screen baskets provide more sufficient opening than the perforated metal baskets. It is stronger and can bear heavy loading pressure than the woven mesh filter baskets. The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings. It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.

We supply following Wedge Wire Basket Strainers:

50 Micron Basket filter element
Materials stainless steel AISI 316
Diameter 8 " x 900mm
Opening 50 microns (0.05 mm) , wedge wire V-profile, for flow from inside to outside.

25 Micron Wedgewire Basket Eelement in stainless steel AISI 316

Diameter 8 " x 900mm
Opening 25 microns (0.025 mm)
Wedge wire V-profile or similar flow from inside to outside.
Basket element in stainless steel AISI 316 , diameter 12 " x 900mm

Opening 50 microns (0.05 mm) wedge wire basket element
V-profile or similar flow from inside to outside
Basket element in stainless steel AISI 316 , diameter 12 " x 900mm
Opening 25 microns (0.025 mm) , wedge wire V-profile or similar flow from inside to outside .
