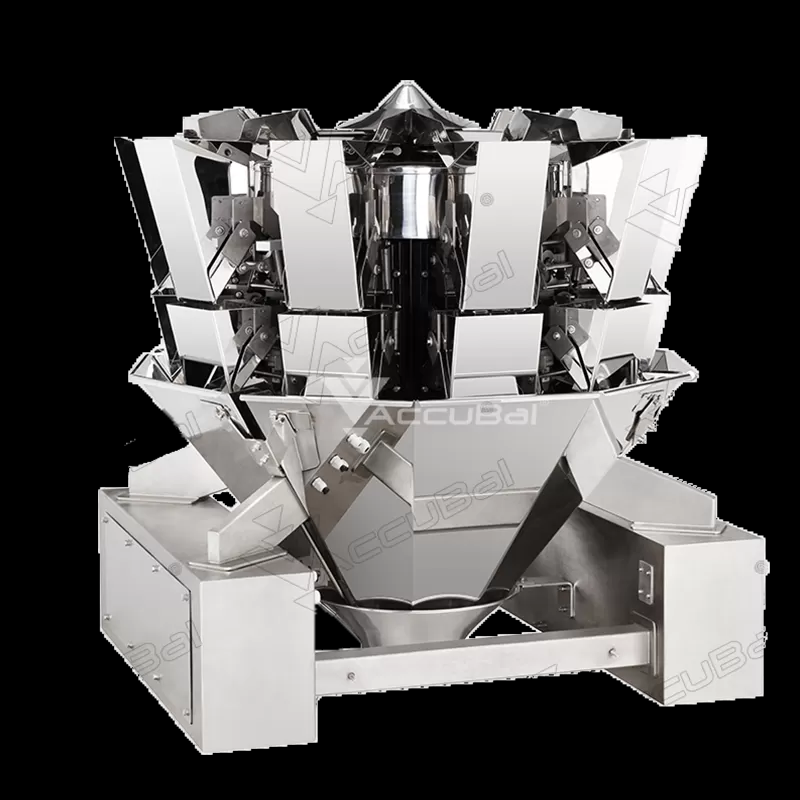

New Generation Economic 10 Heads Multihead Weigher

Our new generation of economical modular 10-head weighers is a weighing machine that uses multiple heads or dispensers to weigh and pack small items. The multihead weighers with Canbus system to achieve fast, precise and maximum weight accuracy. Food and lumpy products can be weighed and counted - from snacks and sweets through granules to metal and plastic parts.

Product Description

Introduction

Our new generation of economical modular 10-head weighers is a weighing machine that uses multiple heads or dispensers to weigh and pack small items. The multihead weighers with Canbus system to achieve fast, precise and maximum weight accuracy. Food and lumpy products can be weighed and counted - from snacks and sweets through granules to metal and plastic parts.

These machines are designed to be cost-effective and efficient, and are typically used in food processing and packaging operations.  They can weigh and package items with a high degree of accuracy and can be programmed to dispense a specific weight of product into each package.



Applications

Puffed food, roasted nuts & seeds, potato chips, candy, sweet dumplings, biscuits, pasta, herbal pieces, pet food, frozen food, hardware ect

Puffed food, biscuits

Puffed food, biscuits

Roasted nuts & seeds

Roasted nuts & seeds

Potato chips

Potato chips

Candy

Candy

Sweet dumplings

Sweet dumplings

Pet food

Pet food

DESCRIPTION

Main Feature

Some of the features that an economic 10 heads multihead weigher can include are:

10 weigh heads or dispensers - Wide rage of application, high price competitiveness, reliable performance.

A user-friendly control panel - 10.4 inch color display, lots of language can be chosen.

A high-speed weighing and packaging process - Speed and amplitude can be adjusted in operation process.

Weigh hopper followed by discharge, effectively prevents blockages.

Amplitude of each linear feeder can be adjusted separately.

99 of present programs are preprogrammed in stock.

The ability to handle a wide range of products and package sizes

The ability to be integrated with other packaging equipment.



Parameter

Model AB-E10-2C-1Xp AB-E10-2C-3Xp
Hopper No. 10 10
Max. Weighing Speed (WPM) ≤65BPM ≤100BPM
Average Tolerance 0.5g-1.5g 0.5g-1.5g
Hopper Volume 1.6Liter 3Liter
Max.Single Discharge 3000ml 6000ml
Single Weigh 20g-1000g 20g-1000g
Single Max Length ≤80mm ≤120mm
Water Proof IP64/IP65 Optional
Preset Number Program 99
Display 10.4 inch TFT colour screen
Power Single AC 220±10%; 50/60Hz; 1.9KW





At least 18 Improvements of 4.0 G
CANBus system Timing hopper high speed control system
Actuator individual boards control Allow setting LF amplitude and time individually when machine running
Modular units Weight sampling function
High accuracy and high speed mode Trouble alarm
Clean function to keep hopper open "Help" function
Automatic Calibration without 1KG Parameters that can be changed without stop the machine
Self-diagnosis with failure alarm message without stop machine Optimization times Work automatically
On-line weight on each hopper during running Set stagger-dump function by Interval time





Snack Food Multihead Scales

Snacks and candy often face many unique packaging challenges, but ACCUBAL brand primary packaging equipment can meet your needs. Snacks can be light and fragile, which means you need an extremely accurate multihead scale and snack packaging machine that won't crush or damage your product during the packaging process.



From snacks and candy to pellets to metal and plastic parts. We offer Snack Food's multi-head weighing Packaging Machine solutions for a wide range of applications.



We provide Snack Food with best-in-class multi-head scales for weighing and filling to complete the packaging process. ACCUBAL's packaging equipment is tailored to meet your Snack Food needs.



PRODUCT DETIAL

Electrophoresis aluminum housing

Electrophoresis aluminum housing

Accubal's electrophoretic coatings (generally nitrogenous resins) have a protective effect on metals and are of high quality.

High quality laser welding hopper

High quality laser welding hopper

Accubal multihead weigher's contact surface with food is 304 stainless steel of food grade.

ABS Water & dust proof cover

ABS Water & dust proof cover

Dustproof and waterproof, protect the machine, prolong the service life.

New design balance frame

New design balance frame

Clever design, stable structure, easy to install and disassemble.

Modular Control System
