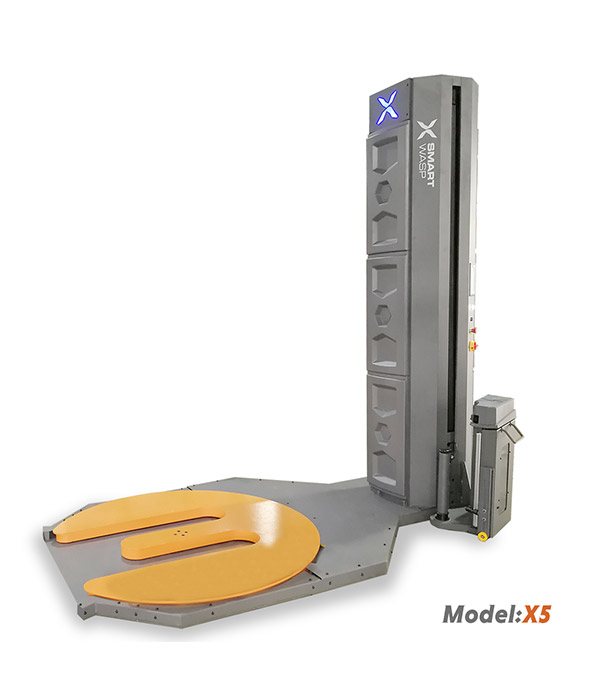

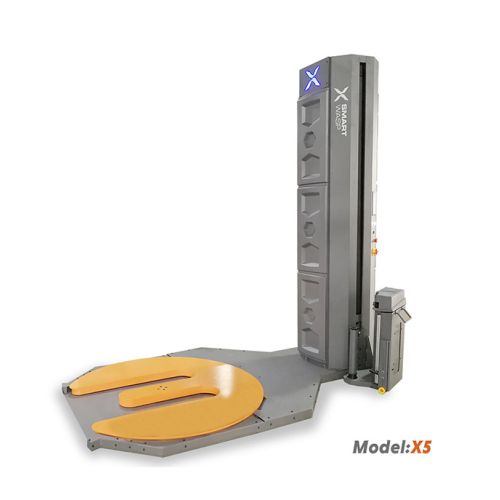

We provide Pallet Wrapping Turntable Pallet wrapper,Our X5 model standard E type turntable pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. We also sale other standard pallet wrapper, turntable pallet wrapping machine.
Product Description
We provide Pallet Wrapping Turntable Pallet wrapper,Our X5 model standard E type turntable pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. We also sale other standard pallet wrapper, turntable pallet wrapping machine.
E Type Turntable Stretch
Compared with other turntable pallet wrapping machines, our equipment takes into account the convenience of forklifts in transporting items. E-type pallet wrapping turntables fit the shape of forklifts, making it easy for forklift worker and wrappers to operating, reducing labor costs and increasing production efficiency.
Muti-layer Function
This stretch wapper function can set different wrapping circles and wrapping force at any height that you want and maximum we can set 9 layers for pallet. Normally machine's wrapping force from bottom to top is the same, and it can not stop during wrapping and achieve reinforce wrapping function. Such function completely avoids these problems.
Better Spare Parts
SIEMENS PLC
SICK proximity switch
AUTONICS photoelectric switch
WEIDMULLER terminal block
X-LINE Inveter
OMRON 24DC supply
Saving Film Consumption
The pre-stretch feature in the turntable pallet wrapping machine maximizes the amount of goods you can wrap while greatly reducing film waste. Pre-stretch wrappers utilize multiple rubber rolls located on a carriage that rotates the rolls at two different speeds as the tray rotates on a turntable. When the wrapping cycle begins, the film in contact with the rollers is stretched to 380% of its original length. This dramatically reduces the amount of material required to wrap a shipment.
1. With pre-stretch roller, maximum up to 380% pre-stretch rate.
2. Maximize the value of each meter of stretch film
3. Standard constant releasing film
4. Fixed-point wrapping and quantitative use film
Automatic Cut Film
1. The blade in the film carriage will cut a small hole in the film.
2. As the stretch machine runs, the hole will be pulled and torn.
3. The film is pulled off and attached to the pallet. The machine will stop, waiting for the next operation.
Intelligent operation Guiding system
1. X5 with LED indicator on machine Ready for work--Blue color
During working--Green color
Alarm--Red color
2.Touch screen guide the user how to operate machine. If alarm appears, touch screen will show you how to solve problem.
Main Features of Semi Automatic Stretch Pallet Wrapping Machine
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Auto reset of turn table
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7. PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8. Pallet stretch wrapping machine soft start and soft stop.
9. Suitable for Light pallet
10. Automatic cut film function
11. E type turntable ,easy for pallet jack load the pallet on machine , As the load remains stationary, they are ideal for wrapping very light, very heavy, high or unstable loads.
