CBB61 AC Film Capacitor With 5 Wire Leads
CBB61 AC Film Capacitor With 5 Wire Leads
Product Description

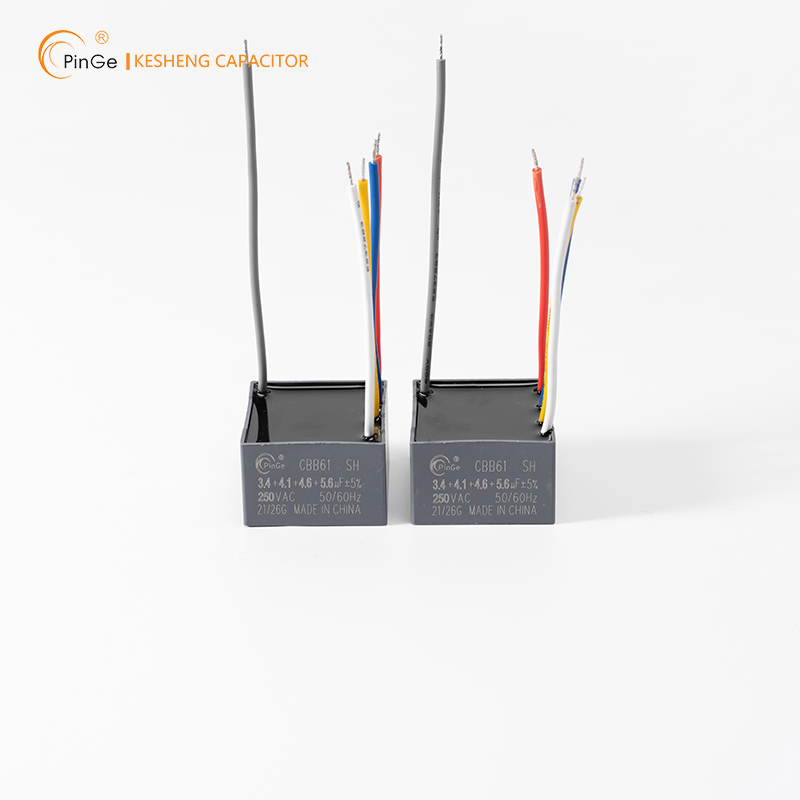

CBB61 Motor run and start AC capacitors.
It is mainly suitable for starting and running the AC motors such as electric fan, rotating equipment, air conditio
■ Non-inductance winding structure
■ Excellent self-healing performance
■ Small equivalent series resistance
■ Low temperature rise
■ Stable performance,high reliability
■ Flame retardant fire protection
■ S0/S3 type, anti-explosion design
Description
Metallised polypropylene( MPP) film capacitor
Epoxy filling
PVC wires
Universal application
Flexible mounting
Categories: AC Motor Capacitors, CBB61
CBB61 Capacitor Specification
|
Reference standards |
GB/T3667.1, UL810, EN60252-1 |
|
Rated voltage UN |
250~450 VAC |
|
Rated capacitance CR |
1~15uF |
|
Capacitance tolerance |
± 5 % |
|
Operating temperature |
-25/70℃; -40/70℃; -40/85℃; -40/105℃ |
|
Storage temperature |
-40 / 70℃ |
|
Dissipation factor (DF) |
20 x 10-4 at 20°C, 50 Hz |
|
Insulation resistance(IR) |
≥2000MΩ .μF (500Vdc,60s) |
|
Voltage test between terminals (Ut-t) |
2 x UN for 5 s |
|
Voltage test between terminals with case |
2200 Volt for 2 s |
|
Expected life |
CLASS B - 10000 hours CLASS C - 3000 hours |
|
Dielectric material |
Metalized polypropylene film |
|
Terminal |
Wires |
|
Case |
Plastic |
|
Filling |
V-0 Flame retardant epoxy resin V-0 |
|
Remarks: When the altitude is more than 2000m,the effect of convection cooling and external insulation should be considered. |
|
Drawing
Typical applications
Kesheng Cbb61 Capacitor 5 Wire is mainly suitable for starting and running the AC motors such as electric fan, rotating equipment, air conditioner, exhaust fan , single phase pump motor.
