0.3MP Global Shutter Camera

High-speed Scanning Camera Module can add 850IR Led Light, The Frame Rate can reach 120FPS, and Support OTG and UVC protocol, It can add 850IR Led Light.

Product Description

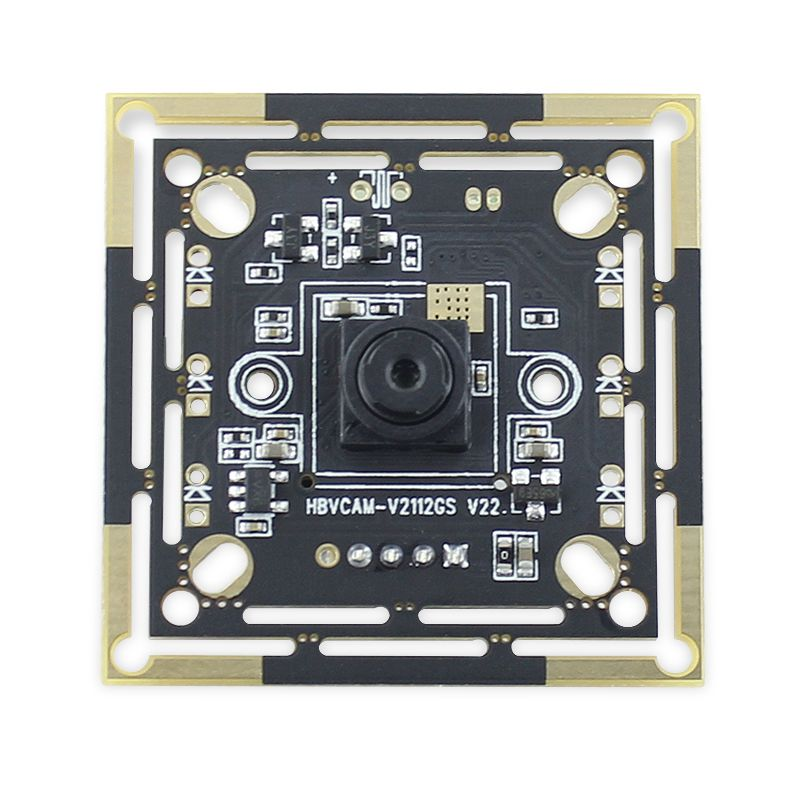

HBVCAM 0.3MP  Global Shutter Black and White High-speed Scanning  Camera Module

* Product size: 38 * 38 *16 ± 0.5 MM

* Product sensor: OV7251 (1/7.5 '')

* Maximum resolution, format and frame rate: 640X480 MJPEG 120FPS

* Maximum viewing angle: 60 degree

* Cable: 4P-2.0MM-40CM



0.3MP Global Shutter Camera Specifications

Module No.

HBVCAM-V2112GS V11

ModulSize

38mm × 38mm × 6.7mm±0.2MM

Temperatur(Operation)

-30°C to 70°C

Temperatur(StablImage)

0°C to 50°C

Assembly technique

SMT (ROSH)

Focus

Fixed

Object distance

30CM-infinity

Resolution

600LW/PH (Center)

PCB printinink

Black

interface

USB 2.0

Power suuply

USB bus power

supply voltage

DC 5V±5%

Maximum Power consumption

500 mW

Operating system request

Win XP/win 7、8 / vista /android 4.0/ mac /Linux with uvc

Sensor

OV7251 (1/7.5” )

Seneor Package

CSP,Bare Die

Maximum resolution

640*480

Sensitivity

2800mV /(lux-sec)

Pixel Size

3µm x 3µm

Maximum ImagTransfer Rate



MJPEG 160x120 120FPS /    YUY2 160x120  30FPS

MJPEG 320x240 120FPS /    YUY2 320x240  30FPS

MJPEG 352x288 120FPS /    YUY2 352x288  30FPS

MJPEG 640x480 120FPS /    YUY2 640x480  30FPS



S/N Ratio

39db

Max DynamiRange

69.6db

Shutter type

Global shutter

AGC/AEC/Whiter balance

Auto

Output Formats

YUY2/MJPEG

Microphone

NO

LenConstruction

4P

F/No

2.8

EFL

2.6 mm

FOV

35°

TV Distortion

<1%

RelativIlluminatio(Sensor)

70%

IR Filter

650±10nm

Module Package

Anti-electrostatic tray

Certifications

FCC/CE/ROSH



Drawings

HBVCAM 0.3MP  Global Shutter Black and White High-speed Scanning  Camera Module



Parameters

HBVCAM 0.3MP  Global Shutter Black and White High-speed Scanning  Camera Module
