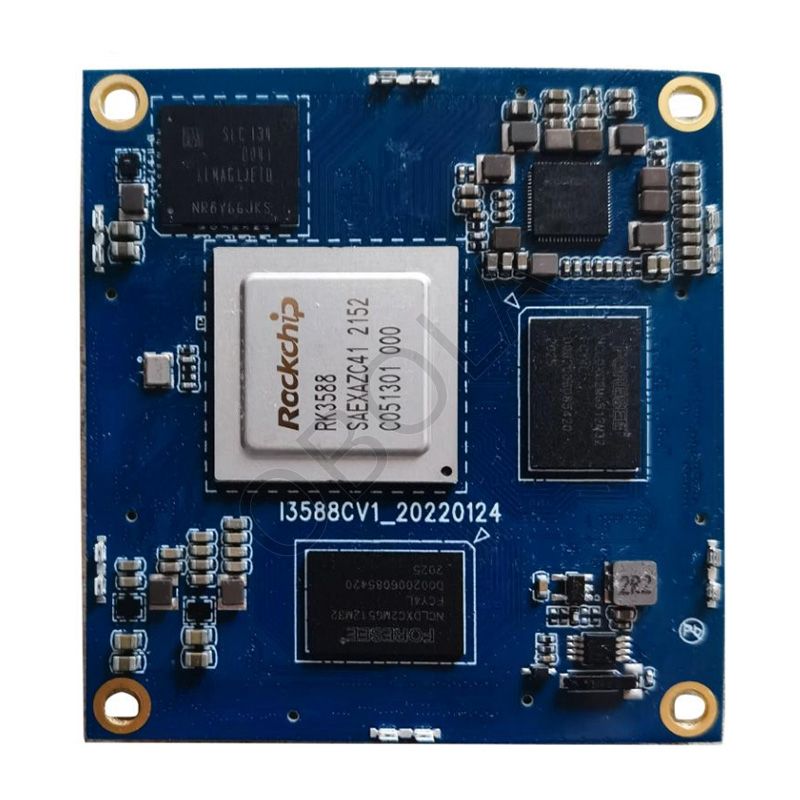

ARM embedded Rockchip SOM RK3588 Android Ubuntu AIOT core board

Product Description

Model: i3588CV1

Optional configuration: RAM(LPDDR4)+ROM(eMMC) 4+16G and 8+32G

The SOM core board is the main component of a SOM based system.It contains the essential components required for the system to function, such as the CPU, RAM, and flash memory. The Core Board is designed to be inserted into a larger carrier board or baseboard, which provides additional functionality and interfaces specific to the application requirements.

The purpose of using a SOM Core Board is to simplify the development process of embedded systems. By using a pre-designed and pre-tested Core Board, developers can focus on designing the application-specific functionalities and peripherals on the carrier board, rather than spending time on the complex hardware design of the entire system.

Features of SOM Core Board

● Advanced 8nm processing, Rockchip new generation AIOT chip, 8K universal SoC.

● 8-cores ARM Framework, CPU 4*A76@2.4GHz & 4*A55@1.8GHz.

● Quad-Core GPU Mali-G610

● NPU 6TOPS AI computing power, support INT4/INT8/INT16 hybrid operation, support TensorFlow/MXNet/PyTorch/Caffe etc network model.

● 8K Encoder/Decoder Exploring, 8K@60fps H.265/VP9 video decoding & 8K@30fps H.265/H.264 video encoding, support decoding & encoding simultaneously, Max 32 1080P@30fps decoding &16 1080P@30fps encoding, HD 8K pictures。

● 8K display, Max 8K@60Hz, Can create a more realistic visual impression.

● Support HDMI2.1, EDP1.3, MIPI-DSI, DP1.4, BT.1120 multi channel video output & HDMI RX2.0, MIPI-CSI, DVP video input, 8K multi channel video output & 4K video input, Can achieve multi screen with different content. Integrated with 48MP ISP with HDR & 3DNR, support MIPI-CSI double camera input.

● Various display interfaces, support for multiple hard drives, gigabit ethernet, WiFi6, 5G/4G extension；

● Support android12.0, linux, debain, ubuntu etc.

● Comprehensive development documents；SDK, technical datasheet, tools.

Applications of SOM Core Board

Edge computing box, AGV, ITX PC, NVR, Interative Kiosk, AR/VR, Clound Service, Internet Media Player. click here
