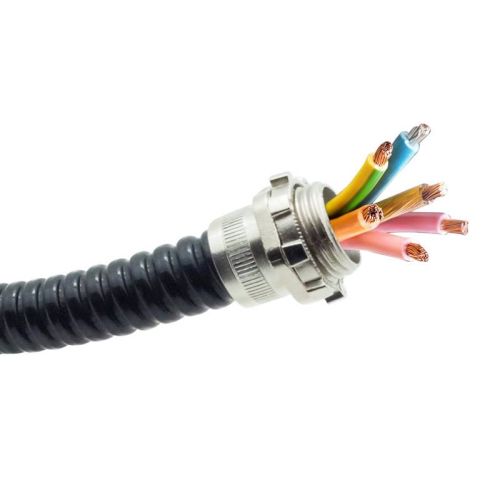

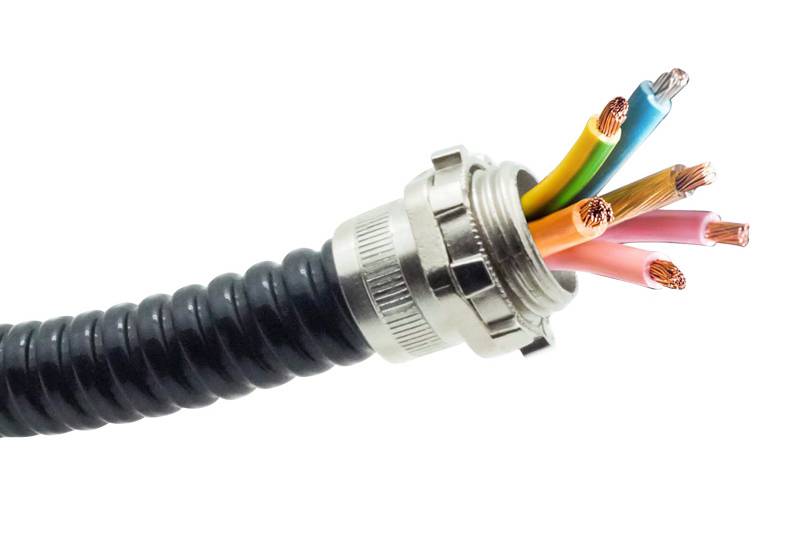

Flexible Metal Conduit Water Proof -PAG13PU Series

Flexible Metal Conduit Water Proof -PAG13PU Series

Product Description

Flexible Metal Conduit Water Proof -PAG13PU Series consists of galvanized steel square-lock flexible conduit and PU waterproof jacket which features with high mechanical characteristics, watertight, fire retardant and corrosion resistant for wire and cable protection. Full range of conduit size meets with the system normally used in Asia market. All materials are compliant with RoHS standard and the PU jacket contains no halogen. This series of product meets with BS EN 61386 standard and has been developed with 3 classified levels, Light, Medium & Heavy, to satisfy different requirements. Because of good chemical corrosion & high abrasion resistance and excellent flexibility under low temperature, the Waterproof Flexible Metal Conduit is the best solution for industrial areas with complex and severe environment conditions, railway system demanding high safety & reliability or machine industry. Recommend to have complete protection efficiency for whole wiring system by adopting fitting series AZ01, AZ05, AZ09, AZ11, GS50 & GS53.



Flexible metal conduit (FMC) is not usually waterproof, but it can be used with liquidtight fittings and seals to create a watertight enclosure for electrical wiring. This is especially important when using FMC in damp or outdoor environments to protect the wiring and prevent moisture ingress.





Material:Galvanized Steel + PU Jacket

Profile:Square-lock

Temperature Range: -40℃~+80℃



IP Rating:

IP 40 (Fit with connector series: AZ01, AZ05)

IP 65 (Fit with connector series: AZ09, AZ11, GS50 & GS53)

Jacket Color : Black (Standard), other colors are available by consult.

Flexibility : High

Fire Retardant : Self-extinguishing

UV Resistance : By ordering

Tensile Resistance : Light 250N / Medium 500N / Heavy 800N

RoHS Compliance : Yes

Certificate : CE



Advantages of Water & EMI Proof Flexible Metal Conduit

Superior Water Resistance:

Our waterproof flexible metal conduit is designed to provide excellent protection against water ingress, making it ideal for wet and damp environments. This ensures the integrity of your electrical systems even in challenging conditions.



Versatile Applications:

The flexible design makes it suitable for a wide range of applications, including industrial settings, outdoor installations, and areas exposed to moisture and chemicals. It can easily navigate around obstacles and fit into tight spaces.



Easy Installation:

The flexible nature of the conduit simplifies installation, reducing the time and effort required. It can be cut to length on-site and easily routed through complex pathways, making it a convenient choice for various projects.



Safety and Compliance:

Our waterproof flexible metal conduit meets industry standards and regulations, ensuring safe and reliable performance. It provides a secure enclosure for electrical wiring, reducing the risk of electrical hazards.



Cost-Effective Solution:

By offering long-lasting protection and reducing maintenance needs, this conduit provides a cost-effective solution for safeguarding your electrical systems. Its durability translates to fewer replacements and repairs over time.



Flexible Metal Conduit Waterproof is a specially designed conduit that combines the flexibility of traditional flexible conduits with the added protection of a waterproof seal. This makes it suitable for environments where water exposure is a concern, ensuring your Electrical Flexible Conduit systems remain safe and operational.



Nominal Conduit Size (mm) Nominal Conduit Size (inch) Part Number ID (mm) OD (mm) Bending Radius (mm) Package / Roll (ft/m) Measurement(LxWxH mm)
10 1/4 PAG13PE - 10 6.8 10.0 30 50 300*300*110
12 5/16 PAG13PE - 12 10.3 14.0 60 50 300*300*200
16 3/8 PAG13PE - 16 12.6 16.6 70 50 370*370*150
20 1/2 PAG13PE - 20 16.1 20.7 70 50 430*430*200
25 3/4 PAG13PE - 25 21.1 25.7 70 50 500*500*150
32 1 PAG13PE - 32 26.8 32.7 100 25 500*500*300
40 1 - 1/4 PAG13PE - 40 35.4 42.2 120 25 550*550*320
50 1 - 1/2 PAG13PE - 50 40.3 46.9 170 25 550*550*350
63 2 PAG13PE - 63 51.6 58.6 200 10 550*550*300
75 2 - 1/2 PAG13PE - 75 63.0 72.0 240 10 550*550*500
90 3 PAG13PE - 90 78.0 87.6 280 5 1000*1000*100
110 4 PAG13PE - 110 102.5 112.1 350 5 1000*1000*200
