Intelligent Distributed IO

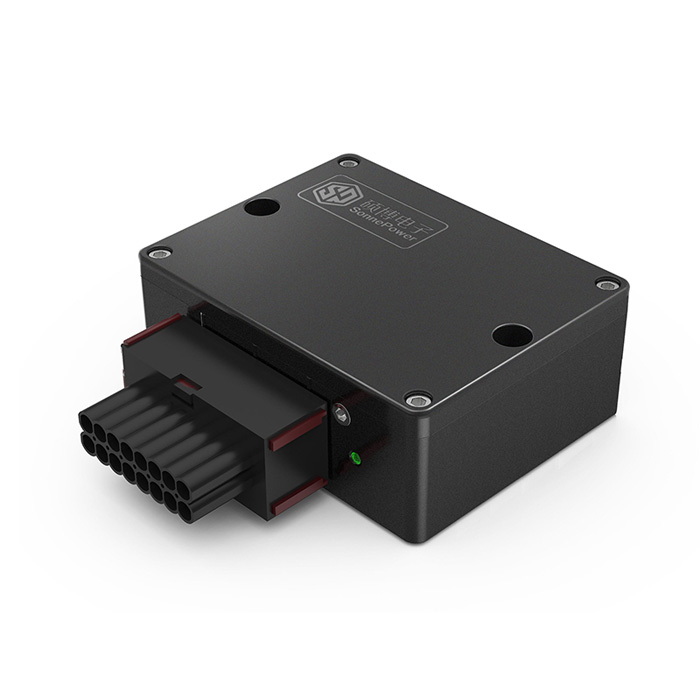

The SPC-SDIO-S0808SPK Intelligent Distributed IO is an affordable smart IO device developed by SonnePower.
Product Description
The SPC-SDIO-S0808SPK Intelligent Distributed IO is an affordable smart IO device developed by SonnePower. It features 1 CAN bus, 8 IO resources, and supports high-level voltage signal collection. With 3A output capacity, it can directly drive devices like electromagnetic valves. IO modules offers high protection level, compact size, flexible port configuration, and fast response speed. It is an ideal choice as the main controller for distributed applications.
★ 1×CAN, support CANOpen
★ IO: 8 (8 inputs / 8 outputs)
★ 1 channel reversing alarm signal input
★ 1 channel 30W voice alarm (can be switched to 2 channels)
★ Integrated Voice Amplifier
| Housing Material | Aluminum |
| Size | 100×91×39.1 mm |
| Installation | 2 x M5×30 (side) or 2 x M5×10 (bottom) screw mounting |
| Connector | 16-Pin Tyco |
| Weight | 0.37kg |
| Working temperature | -40...85 ℃ |
| Protection class | IP67 |
| Total IOs | 8 channels (8 inputs/8 outputs) |
| IO resource | 8×AIU(0-10V)/DIH; 8×DOH(3A) |
| Input | Up to 8 inputs can be configured |
-The input power range is 8-32V, suitable for both 12V and 24V specialized vehicles.
-It meets the 7637-2 testing standard, passing static electricity tests of 15KV, lightning tests of 4KV, and EFT (electrical fast transient) tests of 4KV.
-All ports have protection against wrong power supply and wrong grounding
-The output port has short-circuit and overheat protection
-All output ports have open circuit detection function
