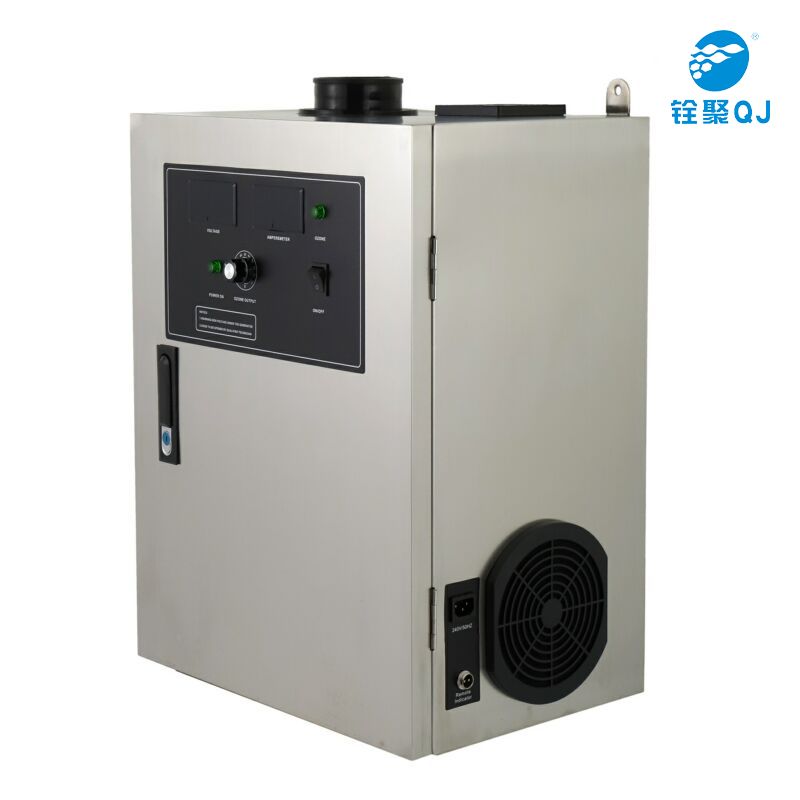

Kitchen Exhaust Ozone Generator

Kitchen Exhaust Ozone Generator

Product Description

FEATURES of Kitchen Exhaust Ozone Generator

● Ozone output: Adjustable ozone

● Technology corona discharge with ceramic plate

● Cooling way: air cooling

● Stainless steel casing

● Gas source: air source

● Built-in air blower

● CE approved

● High ozone concentration and ozone output,far conveying distance,perfect sterilization effect

● Large dust-proof and radiator-grid,with excellent heat dissipation and long life

● Front door to access equipment

● 100mm tube filter on top for ozone output

● Side opening fans with dust filter

● Lags welded for installation against wall



SPECIFICATIONS of Kitchen Exhaust Ozone Generator

Item

Unit

OG-35

OG-50

Ozone output

G/Hr

35

50

Power

W

350

400

Voltage

V/Hz

AC240/110V,50/60HZ

Dimension

cm

40*32*62

45*32*62

Unit weight

Kg

25

28

External case

/

Stainless steel 304

Cooling method

/

Ambient air cooling

Air flow

M3/H

240



Working Principle of Kitchen Exhaust Ozone Generator

Kitchen range hoods move all heat, fumes, oil, grease, odours out of the building through ductwork and exhaust fans. The Kitchen Exhaust Ozone Generator is installed in a false compartment and the oxidant is delivered to the exhaust pipe using a special flexible ¼” pipe. The Kitchen Exhaust Ozone Generator's high concentration of oxidant is mixed into the exhaust gas, oxidizing oil and grease aerosols into moisture, carbon dioxide and fines Dust, then exits the kitchen pipes. This oxidizes other VOCs, toxic fumes and odors within 4 to 5 seconds.

The operation of the unit is automatic and takes a signal from the exhaust fan, so it starts automatically when the fan starts and goes to standby when the airflow stops.



Benefits of Kitchen Exhaust Ozone Generator

1. Prevents microbial contamination by killing bacteria, mold, fungi, spores, viruses and all harmful microorganisms.

2. Destroys oil, solids, grease and other contaminants and keeps exhaust pipes clean. Thereby reducing the risk of fire in the pipeline works.

3. Ozone reacts with all microorganisms and effectively eliminates them due to its powerful disinfecting and oxidizing power. This removes all odors and fumes. As a result, odors and fumes are prevented from re-entering the HVAC system through fresh air intakes in nearby buildings and offices.

4. Increases the life of the ventilation system and reduces maintenance costs.
